UGTK / Toolkit / API / WebSockets System Completed

WebSockets System

Summary

Real-time multiplayer connectivity over WebSockets: an abstract Mn_Socket connects to a configurable server, with Mn_Host opening matches and Mn_Client joining them, plus a dashboard UI listing available matches (ideal for QR-based short match IDs).

Modules Dependencies

This module depends on the following UGTK module: - Dashboard System: Mn_GameDashboard/Mn_Game extend Mn_Dashboard/Mn_DashboardElementHolder.

It also relies on the third-party NativeWebSocket library and Newtonsoft.Json for the socket transport and message parsing.

Carried inside the prefabs. These modules are not referenced by the assembly definition - the components are simply already attached to the prefabs this module ships. Remove one of them from the project and the prefab keeps its layout and loses that behaviour, with nothing in the console to say so.

Module	Component, and the prefab carrying it
`LibrariesExtensions/GameObjectExtension`	`Mn_GameObjectDestroyer` (in `ClientScreenTemplate`), `Mn_GameObjectDestroyer` (in `HostScreenTemplate`)
`UIModule/DashboardSystem`	`Mn_DashboardStringList` (in `HostScreenTemplate`), `Mn_StringHolder` (in `DashboardPlayerId`)
`UIModule/LayoutAutoResize`	`Mn_HorizontalAutoResize` (in `HostScreenTemplate`), `Mn_VerticalAutoResize` (in `ClientScreenTemplate`)
`UIModule/TextUpdaterSystem`	`Mn_TextUpdater` (in `ClientScreenTemplate`), `Mn_TextUpdater` (in `HostScreenTemplate`)
`UtilitySystems/PoolingSystem`	`Mn_Pooler` (in `ClientScreenTemplate`)

Setup

Everything is configured through a SO_SocketInfo asset rather than in the prefabs, so that one build can be pointed at a different server without touching a scene. Create one, fill in the address and the port, and hand it to both sides.

On the machine that runs the shared screen, drop the Host prefab in and give it the SO_SocketInfo.
On the device that joins, use the Client prefab with the same asset.
HostScreenTemplate and ClientScreenTemplate are the starting layouts for each side; DashboardGameElement and DashboardPlayerId are the rows the dashboard clones per open game and per connected player.

Both prefabs derive from Mn_Socket, which holds the connect, disconnect and message plumbing. Mn_Host also keeps a HostMatchInfo describing the current match, and Mn_GameDashboard lists what is open.

Two things to know before the first test. The transport is NativeWebSocket, shipped under ThirdParty/ - in WebGL builds it becomes the browser's own WebSocket, which means an https:// page can only talk to a wss:// server, never to ws://. And messages are JSON through Unity.Newtonsoft.Json, so a type that will not round-trip through it will not cross the wire.

How To Use

Create a SO_SocketInfo asset and set the WebSocket URL (dev linkNoProduction, e.g. ws://localhost:8080, or linkProduction with the production flag).
Add Mn_Host (host side) or Mn_Client (player side) and assign the SO_SocketInfo. Hosts can auto-generate a short Base62 matchId on connect (good for QR); clients join with ConnectByDashboard(matchId).
Subscribe to the socket UnityEvents (OnSocketOpen, OnSocketClosed, OnEventDispatch, etc.) and the match-list events; available matches auto-refresh via host.list_matches.
Add Mn_GameDashboard and bind it to a Mn_Host/Mn_Client to display the current matches as Mn_Game rows.

Testing Scene

Open WebSocketScene in the module's Debug/ folder.

What to do, in order:

Press Connect() and watch the connection events.
Stop the server while connected.
Restart it and see whether the client comes back on its own.
Connect two clients with the same player id.

Step 2 is the whole reason this module is hard: a socket that dies is not an error you asked for, it just goes quiet. What the game does in the following ten seconds is the difference between a reconnect and a frozen lobby.

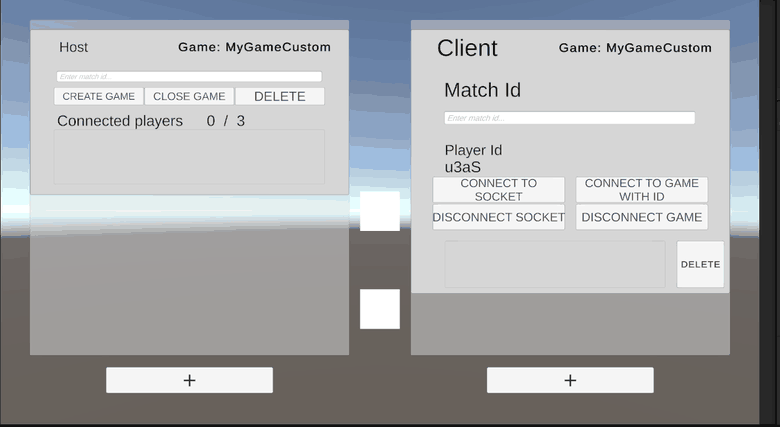

WebSocketScene is a rehearsal room: a Host panel on the left with Create Game / Close Game and a live count of connected players, and as many Client panels on the right as you press + for. Each client gets its own player id, so one editor can play several people - which is the only practical way to try a room filling up without a second machine.

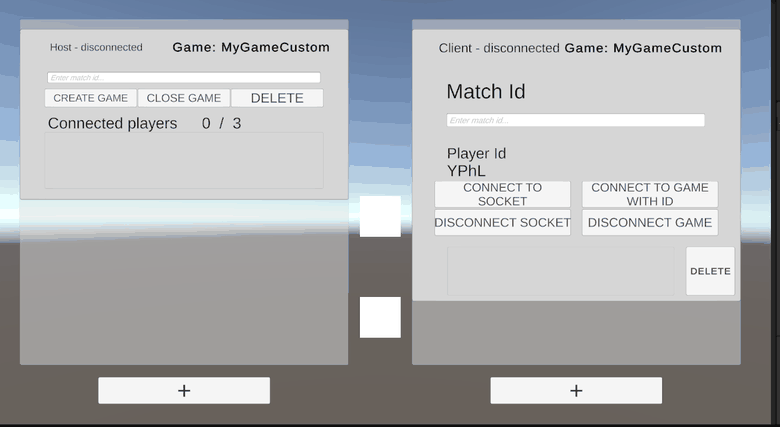

Each panel's title carries the socket's state, so the demo can be read without the console:

Mn_Socket.ConnectionStatus is the one line behind it - disconnected, connecting..., connected, or error: ... - bound to the title with an Mn_TextUpdater. Bind it into your own UI the same way; a socket has no appearance of its own, and until something renders that string a working connection and a refused one look identical.

Failures are no longer quiet either. An error, a close that arrives before the socket ever opened, and an attempt that gets no answer at all within ten seconds each reach the console regardless of debugMode, naming the address they were trying. That last case is the one that used to waste an afternoon: a firewall that drops the connection answers nothing, so the attempt simply hung.

Technical Info

Mn_Socket: abstract base managing the NativeWebSocket connection, match id generation, available-match polling and event dispatch (OnEventDispatch, OnRawJson, OnSocketOpen/Closed/Error).
Mn_Host: host-side socket that opens matches and exposes the downloaded match/game-row lists.
Mn_Client: client-side socket that joins/leaves matches (player.join_match / player.leave_match).
Mn_GameDashboard: Mn_Dashboard<S_GameRow> showing the match list from a host or client.
Mn_Game: Mn_DashboardElementHolder<S_GameRow> UI row with a Connect button.
SO_SocketInfo: ScriptableObject holding the dev/production WebSocket URLs (GetLink()).
S_GameRow / S_SubEvent: data structs for match rows and sub-event routing.
