Text Updater System

Summary

The TextUpdaterSystem is a utility for dynamically updating UI text elements in Unity using TextMeshPro. It allows for real-time reflection of variable values from specified MonoBehaviour components, supporting both public and non-public fields and properties.

Modules Dependencies

The TextUpdaterSystem module requires the following dependencies:

TextMeshPro: Unity package for advanced text rendering.

Ensure that these dependencies are correctly imported and configured in your project.

Setup

To set up the TextUpdaterSystem, follow these steps:

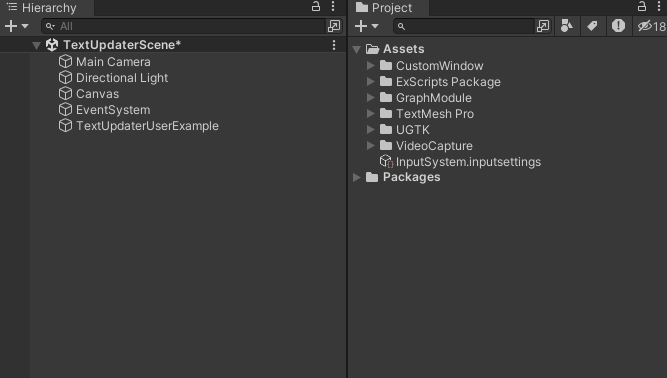

Add the TextTupdater to your scene:

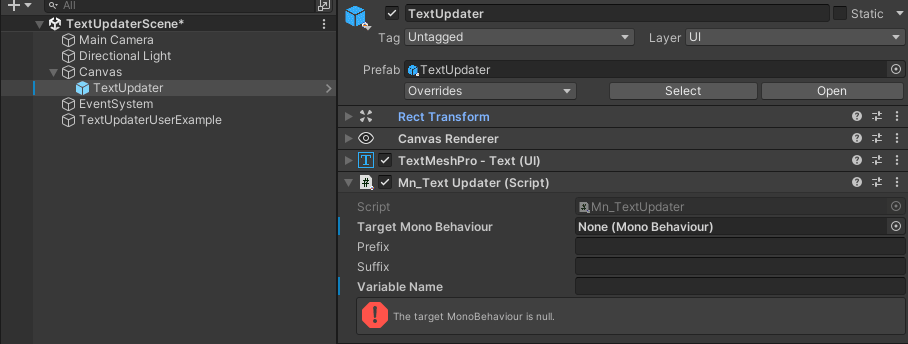

Configure the TextUpdater:
Assign the target MonoBehaviour that contains the variable you want to monitor.
Specify the variableName that corresponds to the field or property within the target MonoBehaviour.
Optionally, add a prefix to the displayed text.
Optionally, add a suffix to the displayed text.

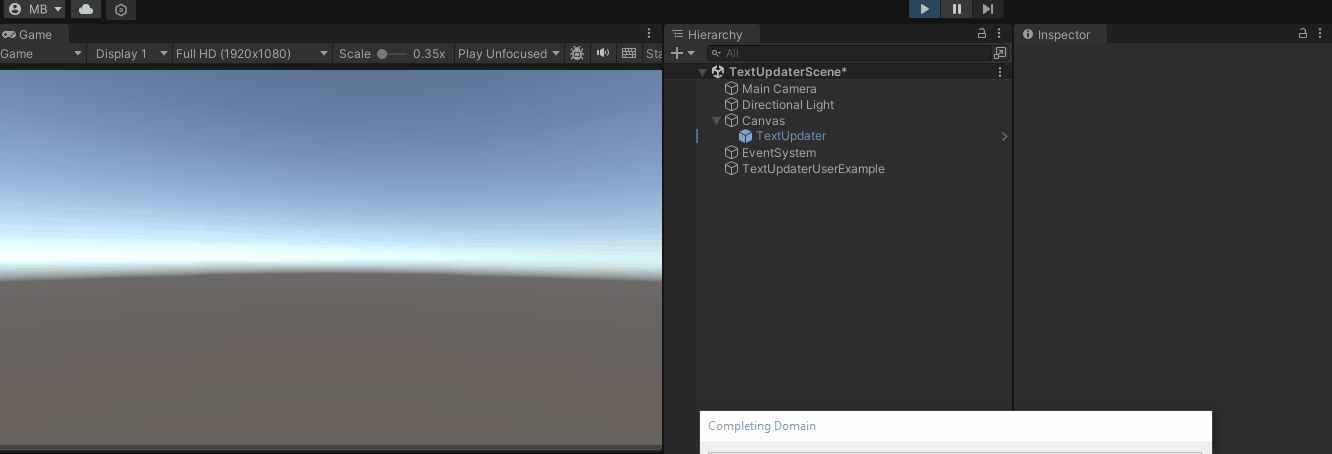

Testing Scene

Good to know:

The binding is by reflection, on a string name. Renaming the field or property in the script does not produce a compile error: the label just stops updating. Grep for the variable name before renaming, or accept that this is the trade-off for a code-free binding.
It reads non-public members too, so a private field with [SerializeField] works — and so does a private you did not mean to expose.
Format your numbers with Number Format. Left empty, the value goes through a plain ToString() and a float prints every decimal it carries — a latency of 419.4894 shows up as 419,4894 ms. Set the field to a standard .NET numeric format and the label reads properly:

Number Format	`419.4894` becomes
(empty)	`419,4894`
`F0`	`419`
`F2`	`419,49`
`N0`	`419` with thousands separators on larger values
`0.##`	`419,49`, and a whole number stays whole

It applies to numeric types only — a string or a bool is untouched — and a malformed format falls back to ToString() rather than throwing. - Use Invariant Culture forces the decimal point instead of the device's separator. Turn it on for a value that must look identical everywhere (a version, an id, a debug readout); leave it off for a number the player reads, so it follows their locale. - prefix and suffix are plain concatenation: remember the leading space in a suffix like " ms".

Technical Info

The following are the main scripts and workflow of the TextUpdaterSystem:

Scripts:

Mn_TextUpdater: Core script that handles the reflection of variable values and updates the TextMeshProUGUI component with the current value.
InitializeReflection: Sets up reflection to access the specified field or property.
ValidateFieldOrProperty: Checks if the specified field or property exists and logs an error if not found.
UpdateTextComponent: Retrieves the current value of the specified field or property and updates the text accordingly.
