Line Chart

Summary

The Line Chart UI module provides a reusable UGUI chart with auto-managed ScrollRect, grid lines, axis labels, and multi-series data visualization.

Content

Modules Dependencies
Setup
How To Use
Testing Scene
Technical Info

Modules Dependencies

TextMeshPro: the axis labels and the point tooltips are TMP text.

The chart draws its lines with Unity UI, so it lives on a Canvas like any other UI element. Nothing else in UGTK is required.

Setup

Add Mn_LineChartGrid to an empty UI GameObject.
Press Build / Repair to auto-create the ScrollRect hierarchy.
Configure axes, grid, and data in the Inspector.

How To Use

Axes:
X Axis supports category list, date range, or pattern generator.
Y Axis supports label list or numeric range.
Layout is fixed to match the paint style: X labels bottom, Y labels left.
Labels are outside the grid and stay visible.
Data:
Use a SO_LineChartDataset for multi-series data (recommended), or edit the local data on the component.
Visualization:
Lines, Bars, or Area fill (per component).
Optional markers per series.
Toggle grid rendering with showGrid.
Axis lines stay visible with showAxes.

Minimal runtime usage:

// Add points (series 0)
chart.AddItem(0, 0, 2);      // discrete
chart.AddItem(0, 1, 42.5f);  // numeric
chart.RefreshData();

Testing Scene

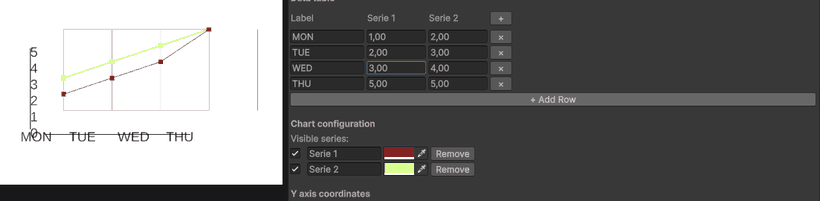

Open LineChartScene in the module's Debug/ folder and select Canvas > LineChart. The inspector is a small spreadsheet: a Data table of labels and series, and a Chart configuration block with a tick per series. Everything redraws with the editor stopped.

What to do, in order:

Untick a series under Visible series: its line disappears from the plot and the axis rescales to what is left.
Edit a cell in the table. The point moves as soon as you press Enter.
Press + Add Row and give the new row a label.
Feed a single point, and then two points sharing the same X.
Feed a series where every value is identical.
Feed several hundred points.

Steps 4 and 5 are the degenerate cases: one point has no line, and a flat series has zero range, which is a division by zero the moment the axis is scaled to fit.
