TMP Line Balancer

Summary

Mn_TMPTextHardLineBalancer re-flows a TextMeshProUGUI string into a fixed (or ranged) number of visually balanced lines by inserting hard newlines at word boundaries. It normalizes spaces, strips existing newlines, and enforces NoWrap + a chosen overflow mode so TMP never adds extra lines on its own.

Modules Dependencies

This module has no hard UGTK dependencies. It requires TextMesh Pro (TMPro).

Setup

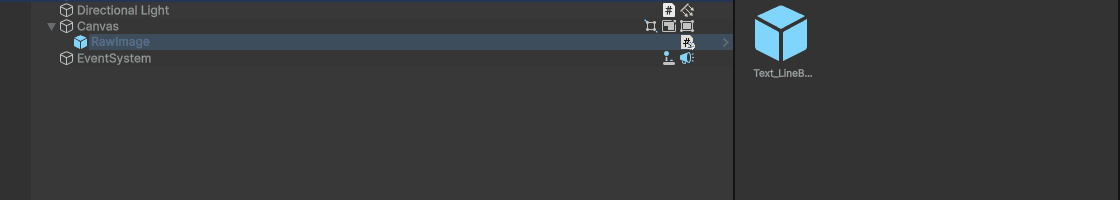

Drop the Text_LineBalancer prefab under a Canvas — a TMP label with the balancer already attached:

How To Use

Add Mn_TMPTextHardLineBalancer next to a TextMeshProUGUI; on Reset/Awake it auto-assigns targetText to the component on the same GameObject.
Choose lineMode: Fixed (fixedLineCount) or Range (minLines/maxLines/currentLines). centerBias tunes how evenly line lengths are balanced.
Options: normalizeSpaces, stripExistingNewlines, minCharsToBalance (below this, text is left on one line), plus forceDisableWordWrapping and forceOverflowMode/overflowMode to keep TMP from wrapping.
With autoReformat on, the balancer watches the text every frame and re-formats when it changes. Public API: SetText(string), SetMaxLines(int), GetMaxLines(), and ForceReformat().
A hard guarantee clamps the output to at most lines - 1 newlines.

Good to know:

It rewrites the label's text. The newlines are real characters in text: reading it back gives you the reflowed string, not the original. The original is kept in the read-only debug field.
It forces TMP's wrapping off and overflow to Truncate/Ellipsis (forceDisableWordWrapping, forceOverflowMode): that is what guarantees the line count, but it also means a line that is too long for the rect gets cut, not wrapped. Size the rect for the longest line, or raise the line count.
autoReformat polls the text every frame. On a handful of headlines that is nothing; do not put it on a list of hundreds of labels — call ForceReformat() when the text changes instead.
Below minCharsToBalance the text is left on one line, which avoids the ugly two-word, two-line result on short strings.

Testing Scene

Open Debug/TMPLineBalancerScene.unity: the same sentence is shown balanced over a different number of lines, so the effect of lineMode and centerBias is visible side by side.

Technical Info

Mn_TMPTextHardLineBalancer: [ExecuteAlways] MonoBehaviour that normalizes the source text, computes balanced word-boundary cuts toward a per-line target length, inserts hard newlines, clamps the line count, and enforces TMP wrapping/overflow settings.
