Image Php Managment

Summary

Image Php Managment uploads images to a PHP endpoint and fetches them back. It is the transport layer behind any "save the player's photo on the server" feature: the photo travels as Base64, so it works from WebGL too, where there is no file system to post from.

It is built on PostRequest, a small fluent wrapper over UnityWebRequest that the module also ships and that you can reuse for any form POST of your own.

Modules Dependencies

None. Two plain classes, no MonoBehaviour and no UGTK reference.

Setup

No component and no prefab — there is nothing to place in a scene, so there is no GIF. Configure the two static values once, at startup:

ImagePhpManagment.SetUrl("https://your.server/api/images.php");
ImagePhpManagment.SetSelectedTableName("player_photos");

The PHP side is not shipped here: the endpoint must accept the fields this class posts.

How To Use

The calls are static factories that build a request; the request is then run as a coroutine, which is why you need a MonoBehaviour to start it:

var request = ImagePhpManagment.SendImage(base64Image);
// or SendBatchImages(a, b, c) / FetchImages("id1", "id2")

StartCoroutine(request.PerformRequest((handler, responseCode) =>
{
    if (responseCode != 200) { /* handle the failure */ return; }
    string body = handler.text;
}));

Good to know:

Base64 costs about a third more bytes than the binary. A full-resolution photo becomes megabytes: resize it before sending, especially on mobile data. SendBatchImages multiplies the problem — it is a single request carrying every image.
The URL and the table are static: they are shared by the whole application and by every later call. Setting them from two places at once is a race worth avoiding.
The response code is the second callback argument, and nothing checks it for you: a 500 from the server arrives with an empty body and no exception.
The endpoint has no authentication of its own. Anyone who finds it can upload: add a token or a signature on the PHP side.
PostRequest is reusable: derive from it, chain SetUri and AddField<T>, and you have a typed form POST without repeating the UnityWebRequest boilerplate.

Testing Scene

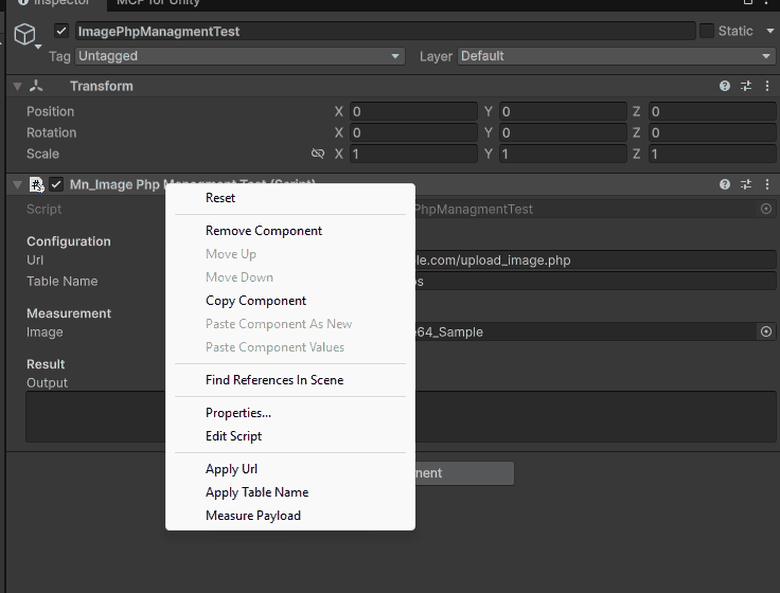

Open Debug/ImagePhpManagmentScene.unity. It holds one object, ImagePhpManagmentTest, carrying Mn_ImagePhpManagmentTest. Nothing here talks to a server: the three entries on the component's context menu answer the questions that decide whether an upload will work before one is attempted. Right-click the header in the Inspector; no play mode.

Apply Url — with the sample http://… endpoint the component accepts it and warns: on WebGL a page served over HTTPS cannot call an HTTP endpoint, and the browser blocks the request before it leaves. That failure looks like a dead server, which is why it is worth catching here. Change the field to https://…, run it again, and the warning is gone.
Apply Table Name — the table the PHP side writes into. It is a plain string, so a typo here surfaces as an empty table rather than an error.
Measure Payload — encodes the assigned Image and reports the size of the base64 string. The sample comes out around 6,800 characters, roughly 0.01 MB. Base64 costs about a third more than the raw bytes, and a photo straight from a phone camera easily reaches several megabytes of text — enough for the request to be refused by post_max_size on the server side. Measuring first is cheaper than debugging a 413 afterwards.

The texture assigned to Image needs Read/Write enabled, exactly as in SpriteBase64: without it the encoding throws instead of returning a string.

Technical Info

Path	Content
`Scripts/ImagePhpManagment.cs`	The three factories (`SendImage`, `SendBatchImages`, `FetchImages`) and the static configuration (`SetUrl`, `SetSelectedTableName`)
`Scripts/PostRequest.cs`	Fluent base for a form POST: `SetUri`, `AddField<T>`, `PerformRequest(Action<DownloadHandler, long>)`
