UGTK / Toolkit / API / Leaderboard Api System Completed

Leaderboard System

Summary

The Leaderboard System displays a list of users and their scores, sorted in order.

Content

Modules Dependencies
Setup
How To use
Testing Scene
Technical Info

Modules Dependencies

The TextUpdaterSystem module requires the following dependencies:

TextMeshPro: Unity package for advanced text rendering.
GameObjectExtension: Extension class for GameObject providing additional functionality.
LayoutAutoResize: Layout auto resize hold UI and change size for incoming UI.
PoolingSystem: The Pooling System efficiently manages and reuses GameObject instances.

Ensure that these dependencies are correctly imported and configured in your project.

Setup

To set up the Leaderboard System, follow these steps:

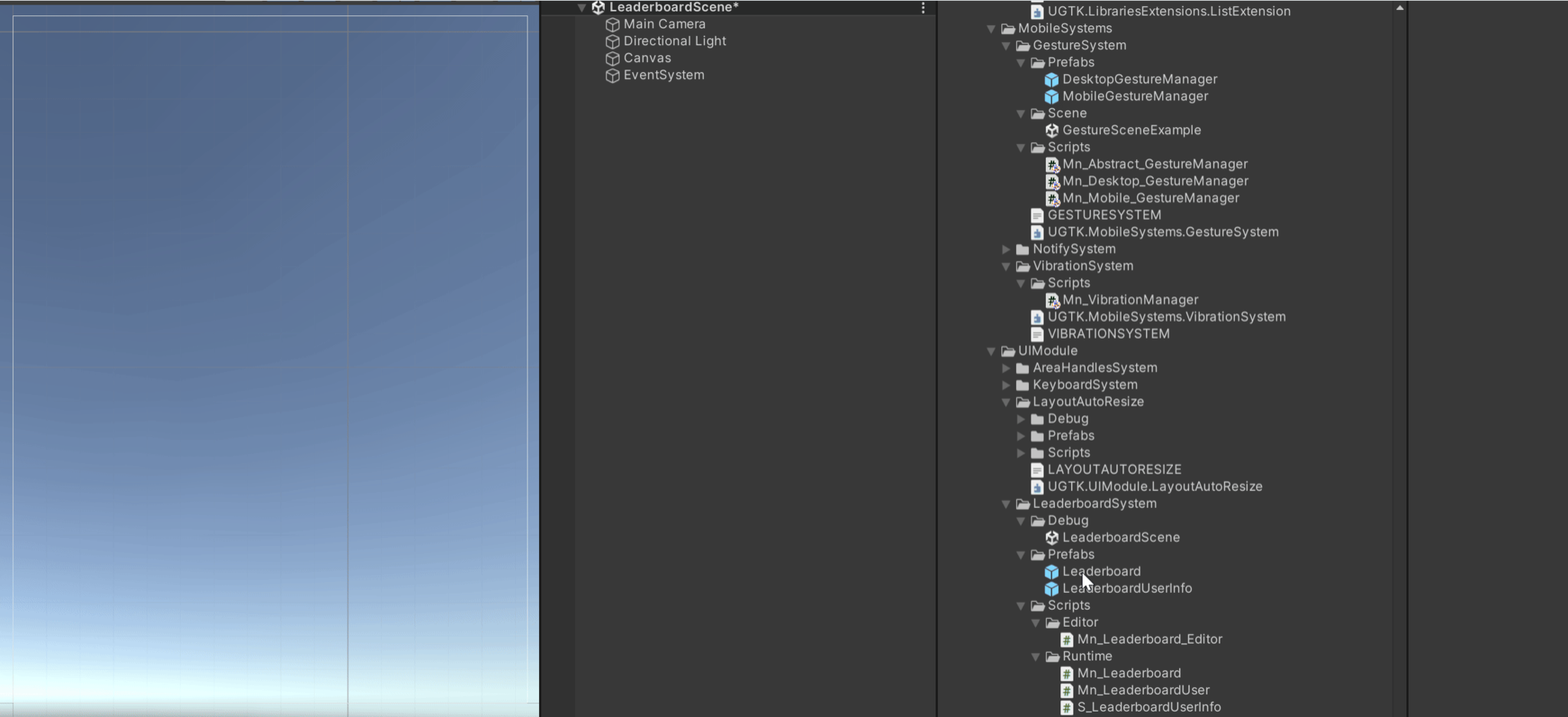

Add the Leaderboard prefab to your scene:

How To Use

To use the Leaderboard System, utilize the following methods, called by code:

Add user(s) to the leaderboard:

leaderboard.AddUsers(listOfUsers);
leaderboard.AddUser(users);
leaderboard.AddUser(nickname, score);
leaderboard.AddItem(userGameobject, entryIndex);

Obtain back the list of users:

List<Mn_LeaderboardUser> users = leaderboard.GetUsers();

Update the score of a user:

leaderboard.UpdateScore(nickname, score);

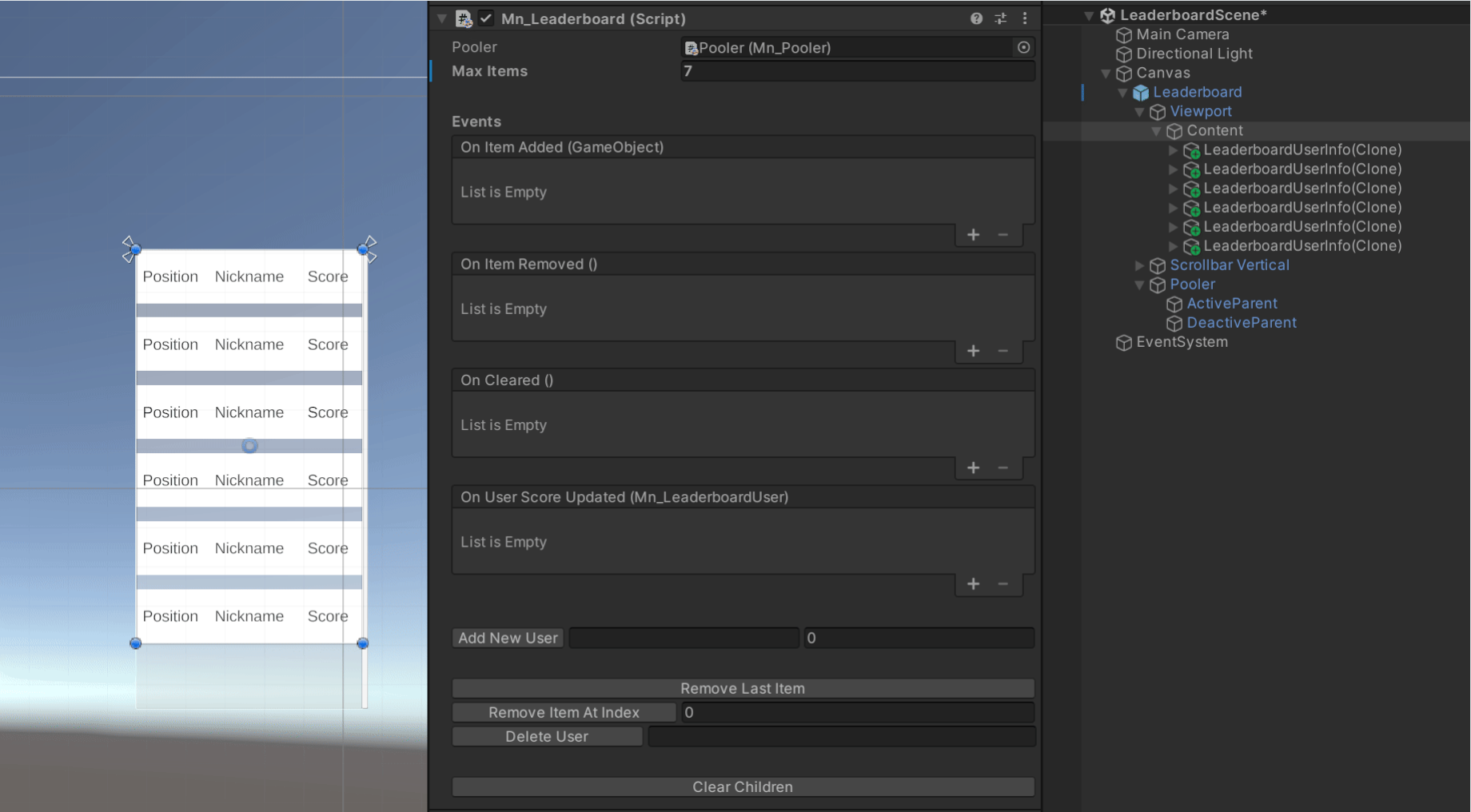

Testing Scene

The board also fills itself from the live server: Mn_LeaderboardDownloader.DownloadUsers() fetches the stored rows from the PHP backend and populates the list at runtime.

Technical Info

The following are the main scripts and workflow of the Leaderboard System:

Scripts:

Mn_Leaderboard: Core script that handles each user entry of the Leaderboard.
Mn_LeaderboardUser: Hold user info to be displayed on the leaderboard.
S_LeaderboardUserInfo: Info about username and score of the user.
