UGTK / Toolkit / API / PhpConnectionSystem Completed

Php Connection System

Summary

The Php Connection System is the backbone of every server call in UGTK. One manager holds the server URL; every operation derives from Mn_PhpOperationBase and only has to declare what to send — the rest (URL resolution, the one-request-at-a-time guard, auto-execute, the repeat loop, the loading screen and the success/failure/offline events) comes for free.

The practical consequence: moving from a staging server to production means changing one field, not hunting for URLs across the project.

Modules Dependencies

Singleton: Mn_PhpManager is a singleton, so any operation can reach it.
Copy Paste System: the URL and table fields carry [CopyPaste], so long URLs can be pasted into the inspector.

Setup

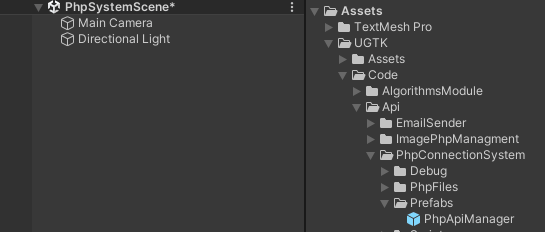

Add the PhpApiManager prefab to the scene — one per game — and set its Server Url:

From then on every operation only needs the file name (login.php), and the manager builds the full URL.

How To Use

On any operation component (this module's own, or one of the modules built on it — Email Sender, Leaderboard, Tickets, Leads…):

Field	What it does
Php File Url	file name appended to the server URL, or the whole URL if the next flag is on
Use Absolute Url	bypass the manager: useful for a third-party endpoint
Table Name	destination table, when the endpoint expects one
Auto Execute On Awake	fire the call as soon as the object wakes
Loop Operation + Loop Delay Seconds	keep repeating: this is the polling of the toolkit
Use Loading Screen	show the shared loading overlay while in flight
Debug Mode	log request and response

Three events tell the three outcomes apart:

OnSuccess(PhpResponse) — the server answered with a success status
OnFailure(PhpResponse) — HTTP error, error status, or an exception while building the form
OnNoConnection — no connectivity at all

Good to know:

Distinguishing OnNoConnection from OnFailure is the point. "You are offline" and "the server refused" need different messages to the player; do not wire them to the same handler.
One request at a time per component. Execute() returns immediately if a call is in flight, which makes a double-tapped button harmless — but it also means a second, different call on the same component is silently lost. Use separate components for separate operations.
Loop Delay Seconds at 0 hammers the server as fast as it answers. Set a real interval.
The URL has no trailing slash handling: the manager joins with /, so a server URL ending in / produces a double slash. Most servers tolerate it, some do not.
Nothing is authenticated by the system itself. Every endpoint is open to whoever finds it: tokens and rate limits belong on the PHP side.
Auto Execute On Awake runs before Start: anything the response handler touches must already be initialized.

Writing Your Own Operation

public class Mn_MyOperation : Mn_PhpOperationBase
{
    public string playerName;

    protected override WWWForm BuildFormData()
    {
        var form = new WWWForm();
        form.AddField("table", tableName);
        form.AddField("name", playerName);
        return form;                    // throw or return null to fail cleanly
    }

    protected override void ExecuteOperation(WWWForm formData) { /* send it */ }
}

Throwing inside BuildFormData is a supported way to refuse: the exception is caught and reported through OnFailure with its message, instead of escaping into the console.

Testing Scene

Open PhpSystemScene in the module's Debug/ folder.

What to do, in order:

Point the operation at your endpoint and press Execute().
Point it at a URL that returns a 404.
Point it at a URL that returns HTML instead of the expected payload.

Step 3 is the failure that wastes an afternoon: the request succeeds, the status is 200, and the parse fails on what turns out to be a hosting error page. Read the raw response before blaming the parser.

Then do the test everybody skips: turn the network off and repeat. A request that never answers is the normal condition on mobile, and it is where a game most often ends up stuck on a spinner with no way back.

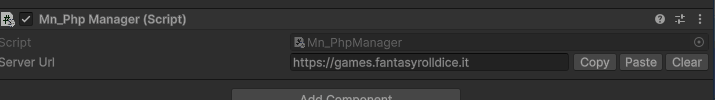

PhpSystemScene holds one object: the manager, and the manager holds one thing that matters - the server URL every operation in the package is resolved against. The recording is the pair of helpers next to it, Copy / Paste / Clear, which is how you move that URL between the manager and the individual operations without retyping it and getting one character wrong.

There is nothing to run here on purpose: this module has no request of its own. To see one leave the machine, open any operation that inherits from it - AppInfoStats, Tickets, LeadsGeneration - turn on Debug Mode and press Execute; the console then prints the URL this manager gave it.

Technical Info

Path	Content
`Scripts/Mn_PhpManager.cs`	The singleton holding the server URL, with `GetPhpFileUrl`
`Scripts/Mn_PhpOperationBase.cs`	The base: URL mode, auto/loop, loading screen, in-flight guard, the three events, `Execute` and the two abstract members
`Scripts/PhpResponse.cs`	The `status` + `message` answer every endpoint returns
`Scripts/Editor/Mn_PhpOperationBaseEditor.cs`	Shared inspector with the Execute button, reusable by derived inspectors
`Prefabs/PhpApiManager.prefab`	The ready-made manager
