Line Chart

Summary

Builds a uGUI line chart at edit-time or runtime: axis grid, dashed gridlines, axis labels (TextMeshPro) and coloured data lines with points, all generated as Image/TextMeshProUGUI children of a RectTransform.

Note: a separate, larger Mn_LineChart also exists under UIModule/LineChart (925 lines, namespaced). This GameplaySystems version is a distinct, simpler implementation (~547 lines, no namespace) — not the same file.

Modules Dependencies

This module has no hard UGTK dependencies. It relies on Unity uGUI (UnityEngine.UI.Image) and TextMeshPro (TMPro) for axis labels.

Setup

Add Mn_LineChart to a UI RectTransform (under a Canvas), fill the vertical/horizontal axis lists and the line data, then press Generate Chart in the Inspector (custom editor) or call GenerateChart().

How To Use

Add Mn_LineChart to a UI object; it requires a RectTransform and runs with [ExecuteAlways].
Populate verticalAxis (numeric labels; the first and last define the value range) and horizontalAxis (string labels), then add S_Line entries (name, color, list of string point values).
Call GenerateChart() — or click the Generate Chart button added by Mn_LineChart_Editor — to rebuild all children (grid, axes, labels, segments, points). Non-numeric or empty points are skipped.
Configure appearance via the Inspector: spacing, thickness, colours, dash length/gap, margins, label offsets, font size and an optional TMP_FontAsset (falls back to the TMP default font).
Runtime setters SetVerticalAxis, SetHorizontalAxis, SetLines validate and replace the data (vertical values are parsed and sorted ascending) before you regenerate.
Mn_LineChartDebug is a sample helper exposing SetVertical/SetHorizontal/SetLines with hard-coded demo data.

Testing Scene

Open LineChart in the module's Debug/ folder and select Canvas > LineChart Scroll > Content. Everything happens with the editor stopped: change a value, press Generate Chart, and the Game view redraws.

What to do, in order:

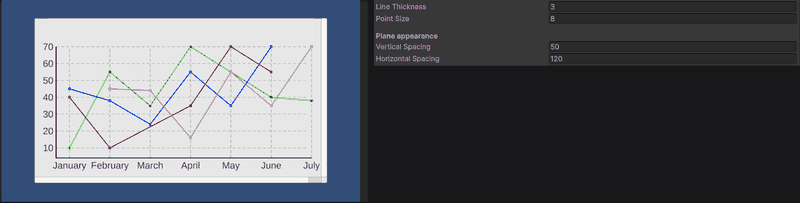

Press Generate Chart with the sample data, then change Line Thickness and Point Size and press it again: the whole plot is rebuilt from the serialized lists, so nothing is cached between one press and the next.
Feed it a single point, then two points with the same X.
Feed it values that are all identical.
Feed it a few hundred points.

Steps 2 and 3 are the degenerate cases every chart gets wrong at least once: a single point has no line to draw, and a flat series has zero range, which is a division by zero waiting to happen when the axis is scaled.

Technical Info

Mn_LineChart: [ExecuteAlways] MonoBehaviour that generates the chart; holds axis lists, the S_Line struct list and layout settings; exposes GenerateChart() and the Set* data setters. Parses values with invariant/current culture and maps them onto the plane with InverseLerp/Lerp.
Mn_LineChart_Editor (Editor): custom inspector adding the Generate Chart button with full-hierarchy Undo.
Mn_LineChartDebug (Debug): sample component that feeds demo axis/line data to a referenced chart.
