Timing System

Summary

A configurable timer that counts up, down or up-without-limit, exposes hours/minutes/seconds/tenths components (int and zero-padded strings), and fires UnityEvents on start, update, end, at specific thresholds and at repeating intervals. Ready-made UI prefabs bind the running clock to TextMeshPro labels through the TextUpdater System, with no code required.

Modules Dependencies

The Timing System module requires the following dependencies:

Dictionary System: the threshold and interval events use S_Dictionary<float, UnityEvent>.
TextUpdater System: used by the UI prefabs to bind the timer fields to TextMeshPro labels by field name.

Ensure that these dependencies are correctly imported and configured in your project.

Setup

To set up the Timing System, follow these steps:

Add the Mn_Timer component to a GameObject (or drop the plain TimeObject prefab):

Or add one of the ready-made UI prefabs under a Canvas: TimeObjectUi_AllSeconds shows the total seconds, TimeObjectUi_Minutes_Seconds shows an MM:SS clock (both auto-start, 60s countdown; the TextUpdater children bind by variableName to allSeconds, minutesStr2, secondsStr2...):

Configure the timer: set the Duration (seconds), pick the Direction (Ascending 0→duration, Descending duration→0, AscendingUnlimited never ends) and enable Trigger On Awake to auto-start. The Time Components fields are read-only mirrors of the running clock:

How To Use

Wire the base events: OnTimerStart, OnTimerUpdate(float) (every frame with the current time) and OnTimerEnd (at the duration bound; never fired in AscendingUnlimited).

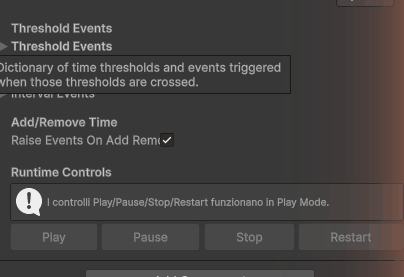

Add Threshold Events (each fires once when its time value is crossed) and Interval Events (each fires at every multiple of its step, in both counting directions):

Control it from the inspector or from code — the custom inspector has the Runtime Controls Play / Pause / Stop / Restart buttons (Play Mode only, multi-selection supported):

Control: StartTimer(), PauseTimer(), ResumeTimer(), ResetTimer(), RestartTimer().
Adjust: SetTime(float) (re-fires the thresholds already crossed), AdvanceTime(float) (accepts negatives for rewind), AddTime(float) / RemoveTime(float) (add/remove time in favour of the counting direction; suppressed events with Raise Events On Add Remove Time off), SetDuration(float) (clamps and resets).
Read: CurrentTime, Hours/Minutes/Seconds/Tenths, the zero-padded HoursStr2/MinutesStr2/SecondsStr2/TenthsStr, GetFormattedTime() ("HH:MM:SS") and GetFormattedTimeWithTenths() ("HH:MM:SS:TT").

    mn_Timer.StartTimer();
    timeLabel.text = mn_Timer.GetFormattedTime();

Testing Scene

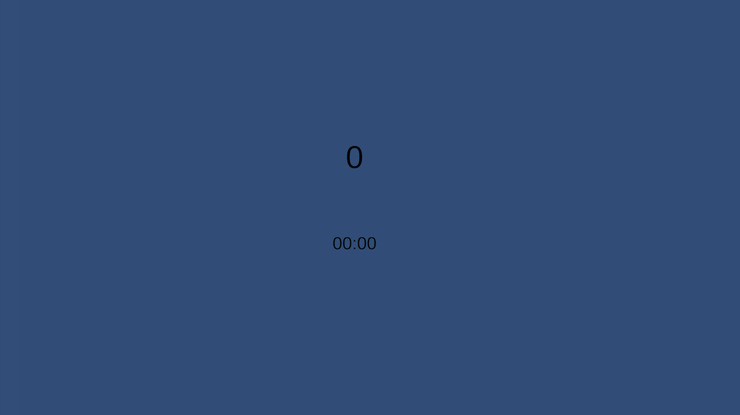

Open Debug/TimerScene.unity and press Play: the three timers auto-start — the two UI widgets count down from 60 (total seconds on top, MM:SS below) and the plain TimeObject runs logic-only. Select one and use the Runtime Controls to pause/reset/restart it:

Technical Info

The following are the main scripts of the Timing System:

Scripts:

Mn_Timer: MonoBehaviour driving the timer in Update, computing the time components (with an epsilon to avoid 59.999→60 display glitches) and dispatching the start/update/end, threshold (edge-crossing, once-only) and interval (every multiple crossed in the frame, both directions) UnityEvents.
E_TimerDirection: enum defining the counting mode (Ascending / Descending / AscendingUnlimited).
Mn_TimerEditor: custom inspector for Mn_Timer with the Runtime Controls section (Play / Pause / Stop / Restart, Play Mode only, Undo-aware).

Prefabs:

TimeObject: plain GameObject with Mn_Timer (60s, Descending), no UI.
TimeObjectUi_AllSeconds: UI widget showing the total seconds via a nested TextUpdater bound to allSeconds.
TimeObjectUi_Minutes_Seconds: UI widget showing MM:SS via two TextUpdaters bound to minutesStr2/secondsStr2 with a static ":" separator.
