FPS Limiter System

Summary

The FPS Limiter System caps the frame rate from a component instead of from scattered Application.targetFrameRate calls. It sets the target FPS, optionally turns VSync off (without which the target is simply ignored on desktop) and optionally pins the physics tick rate — the three settings that always have to move together. Use it to save battery on mobile, to keep a kiosk quiet, or to reproduce a slow device on your own machine.

Modules Dependencies

None. Two MonoBehaviours, no UGTK reference.

Setup

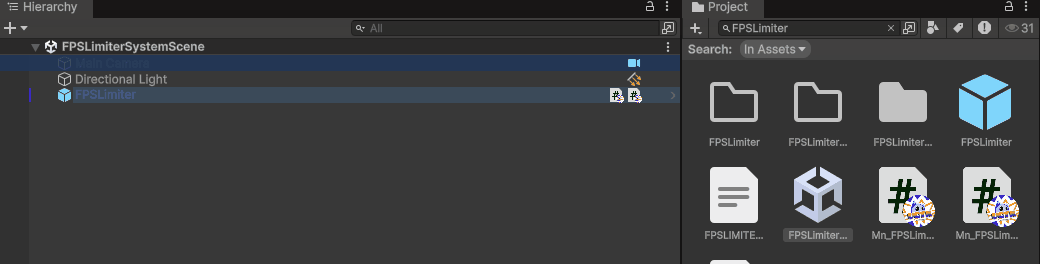

Drop the FPSLimiter prefab into the scene — a GameObject with Mn_FPSLimiterSystem already on it. It applies itself in Awake, so there is nothing to call:

Or add Mn_FPSLimiterSystem to any GameObject: the component is [DisallowMultipleComponent], and one per scene is enough since every setting it touches is global.

How To Use

Frame Rate - Target Fps (default 30): the FPS you want. Typical values are 30, 45, 60, 120. Below 1 it is forced back to 30. - Auto Apply Target Changes (default on): Update watches targetFps and re-applies as soon as it changes — which is what makes the value editable live from the inspector while playing.

VSync - Disable VSync (default on): sets QualitySettings.vSyncCount = 0. Leave it on: with VSync active the platform decides the frame rate and targetFrameRate is ignored, so the limiter would do nothing.

Physics - Set Fixed Delta Time (default on) + Fixed Update Rate (default 50): writes Time.fixedDeltaTime = 1 / rate. Keeping physics at 50 Hz while rendering at 30 FPS means two physics steps per frame; dropping the rate to match the FPS makes physics cheaper but less accurate. If in doubt, leave 50.

fpsLimiter.SetTargetFps(60);          // sets and re-applies at once
fpsLimiter.ApplySettings();           // re-applies everything (VSync, target, fixedDeltaTime)

int wanted  = fpsLimiter.RequestedTargetFps;   // what the component asked for
int applied = fpsLimiter.AppliedTargetFps;     // what Unity actually reports

Comparing those last two is the quickest way to see that the platform refused the request.

Good to know:

On WebGL the target is ignored: the browser drives the loop through requestAnimationFrame, so the page's refresh rate wins. AppliedTargetFps shows it.
Time.fixedDeltaTime is global and sticky: it stays as you set it for the rest of the session (the Editor restores it when you leave Play Mode, a build does not). One limiter per project, and do not fight it from elsewhere.
ApplySettings() logs every time it runs. With Auto Apply on, a script that changes targetFps every frame produces one log line per frame: change the value once, or turn Auto Apply off and call SetTargetFps yourself.
A cap is a ceiling, not a floor: it never makes a slow scene faster. If the measured FPS is below the target, the bottleneck is elsewhere.

Testing Scene

Open Debug/FPSLimiterSystemScene.unity and press Play: Mn_FPSLimiterSystemTest measures the real frame rate and logs it to the console once a second, next to the requested target — change Target Fps in the inspector while playing and watch the measured value follow it.

Technical Info

Path	Content
`Scripts/Runtime/Mn_FPSLimiterSystem.cs`	The component: `ApplySettings()` (VSync, `targetFrameRate`, `fixedDeltaTime`), the live-change watch in `Update`, `SetTargetFps`
`Debug/Mn_FPSLimiterSystemTest.cs`	Test helper: counts frames and logs the measured FPS against the target every `logInterval` seconds
`Prefabs/FPSLimiter.prefab`	Ready-made GameObject with the component
`Debug/FPSLimiterSystemScene.unity`	Test scene: camera, light and the limiter with its test helper
