Input Compatibility (UGTKInput)

Summary

UGTKInput is a drop-in replacement for UnityEngine.Input that lets every UGTK system work with both the legacy Input Manager and the new Input System package, whatever the consumer project sets in Active Input Handling. Reading UnityEngine.Input while the project is set to "Input System Package (New)" throws InvalidOperationException at runtime and silently aborts the handler that was running — this module removes that failure mode.

Modules Dependencies

Requires the com.unity.inputsystem package (declared in the UGTK package.json). No other UGTK dependency: this module is the lowest layer and is referenced by the systems that read input.

Setup

No setup required. Add UGTK.UtilitySystems.InputCompat to your assembly definition references and using UGTK.UtilitySystems.InputCompat; to your script.

The setting this module exists for lives in Edit ▸ Project Settings ▸ Player ▸ Other Settings ▸ Configuration ▸ Active Input Handling. Whatever you pick there — Input Manager (Old), Input System Package (New) or Both — the UGTK systems keep working.

This module has no scene, no prefab and no inspector: it is a static facade, so there is nothing to show in a GIF. Changing Active Input Handling makes Unity restart the editor — check it, don't flip it mid-session unless you mean to.

How To Use

The API mirrors UnityEngine.Input member by member, so migrating a call site is just swapping the prefix:

using UGTK.UtilitySystems.InputCompat;

Vector3 p     = UGTKInput.mousePosition;
Vector2 wheel = UGTKInput.mouseScrollDelta;

if (UGTKInput.GetMouseButtonDown(0)) { /* ... */ }
if (UGTKInput.GetKeyDown(KeyCode.Space)) { /* ... */ }

float h = UGTKInput.GetAxis("Horizontal");
if (UGTKInput.GetButtonDown("Jump")) { /* ... */ }

if (UGTKInput.touchCount > 0)
{
    UGTKTouch touch = UGTKInput.GetTouch(0);   // position / deltaPosition / phase / fingerId
}

Behaviour: when the legacy Input Manager is enabled (Active Input Handling Old or Both) the calls go straight to UnityEngine.Input, so semantics — including project-defined axes and buttons — are unchanged. Only when the legacy manager is disabled are the calls mapped onto the new Input System.

Notes on the new-Input-System path: - mouseScrollDelta is normalised (the new system reports 120 per notch, legacy reports 1). - GetAxis/GetAxisRaw synthesise the conventional axes (Horizontal, Vertical, Mouse X, Mouse Y, Mouse ScrollWheel) from keyboard/gamepad/mouse, because the new system has no project-wide axes. Custom axis names return 0 — use Input Actions for those. - GetButton* maps the conventional names (Jump, Fire1, Fire2, Fire3, Submit, Cancel). - mousePosition falls back to the primary touch when there is no mouse.

Testing Scene

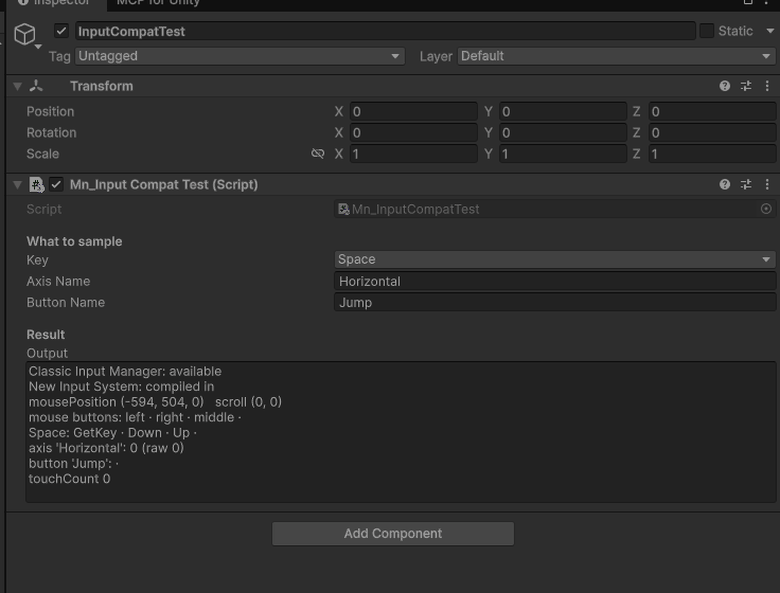

Open Debug/InputCompatScene.unity. It holds one object, InputCompatTest, carrying Mn_InputCompatTest. Unlike most of the debug components in UGTK this one needs Play Mode: it samples the input every frame, so there is nothing to read with the editor stopped.

Press Play, click once inside the Game view so it takes the keyboard, and watch the Output field:

The first two lines answer the question the module exists for — which backend is actually live. Classic Input Manager: available and New Input System: compiled in are read independently: a project can have both, one, or neither, and a build that has neither is a build where nothing reads input at all.
Hold Space. Space: GetKey ON Down appears for the frame of the press, then only GetKey ON while it is held, and Up on the frame you let go. The virtual button Jump turns ON with it, because the default Input Manager maps Space to Jump.
Hold D. axis 'Horizontal' climbs to 1, (raw 1) alongside it, and drops back to 0 on release. Change Axis Name or Button Name to any axis of your own project and the same line reports it.

The point of the scene is that every line comes through UGTKInput, never through Input or Keyboard.current directly. What the component prints is exactly what your game would read on whichever backend the project happens to be built with.

Technical Info

UGTKInput: static facade mirroring UnityEngine.Input (mouse, keyboard, axes/buttons, touch). Compiles the legacy path under ENABLE_LEGACY_INPUT_MANAGER and the new-system path under ENABLE_INPUT_SYSTEM, including a KeyCode → Key mapping.
UGTKTouch: input-system-agnostic touch struct (fingerId, position, deltaPosition, phase).

Systems migrated onto this layer: KeyboardSystem, PauseSystem, GestureSystem (desktop + mobile), MotionSystem, FollowSystem (mouse/touch), FirstPerson3D, TournamentSystem (canvas zoomer), KeyInputActionSystem.
