Code Wizard

Summary

An editor window (UGTK > Code Wizard) that generates C# scripts from configurable templates — raw class, MonoBehaviour, UGTK Singleton, and SO dictionary/simple/randomic databases — defining types and members visually, then tracks, regenerates (region-patched) and deletes the generated files.

Modules Dependencies

This module is self-contained editor tooling. Some built-in templates emit code that references UGTK systems (the Singleton pattern and the ScriptableObject dictionary/database systems), so the generated scripts assume those UGTK systems are present in the project. The wizard itself has no hard runtime UGTK dependency.

Setup

This is an editor-only tool (#if UNITY_EDITOR); no scene setup is required. Open it via UGTK > Code Wizard. Its configuration is persisted in a CWProjectAsset ScriptableObject, and generated scripts go by default under Assets/UGTK/Generated/CodeWizard (configurable in the Settings tab).

How To Use

The window has three tabs:

Create: pick a template (Raw class, Raw MonoBehaviour, Singleton, SO Dictionary, SO Simple Database, SO Randomic Database), set the type name, namespace, kind (Class / StaticClass / Struct / Enum / MonoBehaviour), inheritance and generics, then add members — fields, properties, methods (with parameters and body), UnityEvents, or enum values — each with visibility and modifiers. Generate to emit the .cs file.
Scripts: browse the files tracked in the project, regenerate them (user code inside preserved regions is kept via region patching), or delete them.
Settings: configure the output root folder and default namespace; the hamburger menu also offers Ping Project Asset, Open Output Folder, and Validate Project.

Testing Scene

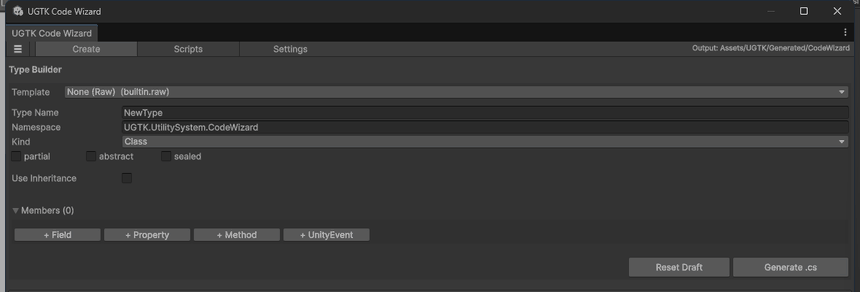

This is an editor tool: there is nothing to play. Open UGTK > Code Wizard and stay on the Create tab, where the Type Builder puts a whole type together field by field.

What to do, in order:

Give the type a name and press + Field, + Property, + Method: each one adds a row with its own access modifier, type and options - a property shows its get and set ticks.
Press Generate .cs and check the file lands in the output folder shown top right.
Generate a type from each template.
Add a member to a generated type and regenerate it.
Write your own code outside the AUTO region and regenerate again.
Adopt a hand-written script, then try to delete a file that has no AUTO region.

Step 5 is the guarantee the whole tool rests on: only the text between the markers is rewritten, so your code survives. Step 6 is the other side — the deleter refuses files it did not generate, which is what stops it eating something you wrote.

Technical Info

CodeWizardWindow: The EditorWindow (menu UGTK/Code Wizard) hosting the Create / Scripts / Settings tabs and the hamburger actions.
CWProject / CWProjectAsset: Serializable project settings (output folder, default namespace, list of generated file records), persisted as a ScriptableObject.
CWDefinitions: Data model for a type and its members (CWTypeDefinition, CWMemberDefinition, CWParameterDefinition, and the CWTypeKind/CWVisibility/CWMemberKind/CWCommonType enums).
CWCreateTab / CWScriptsTab / CWSettingsTab: The three tab UIs.
Templates (CWDefaultTemplate, CWRawTemplate, CWRawMonobehaviourTemplate, CWSingletonTemplate, CWSODictionaryTemplate, CWSOSimpleDatabaseTemplate, CWSORandomicDatabaseTemplate, CWTemplateRegistry, CWBuiltinTemplateIds, ICodeWizardTemplateProvider, CWTemplateRules, CWFileComposer): the pluggable template system.
Generation (CWGenerator, CWCodeEmit, CWRegionPatcher, CWScriptDeleter, CWGeneratedFiles, CWGeneratedScriptInfo, CWGeneratedScriptScanner, CWExternalScriptAdopter): code emission, region-preserving regeneration, deletion, and tracking/adoption of generated scripts.
Utils / Validation (CWPathUtil, CWTypeCacheUtility, CWTypeNameUtil, CWVisibilityUtil, CWValidator): path helpers, type-cache warmup, name/visibility helpers, and project validation.
