Desktop Window Controls

Summary

A set of small components to control the application window and lifecycle: quit the app, toggle fullscreen, and minimize the window on Windows Standalone (via Win32 ShowWindow).

Content

Modules Dependencies
Setup
How To Use
Testing Scene
Technical Info

Modules Dependencies

This module has no hard UGTK dependencies.

Setup

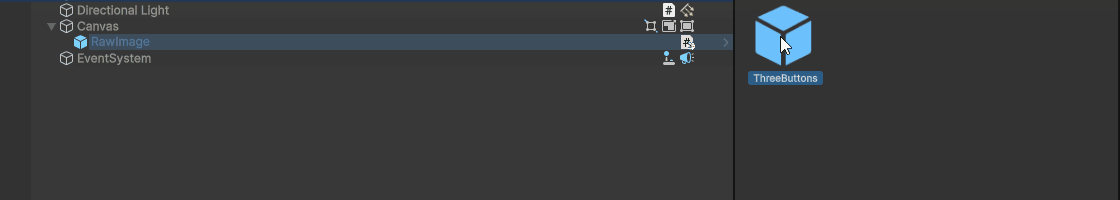

Drop the ThreeButtons prefab under a Canvas — quit, fullscreen and minimize already wired:

Add whichever component you need to a GameObject: Mn_Quit, Mn_ToggleFullScreen, or Mn_WindowsMinimizer. On Mn_WindowsMinimizer you can enable Allow In Editor (otherwise minimizing is skipped in the editor) and Verbose Logs for diagnostics. Then bind the relevant method to a UI Button's OnClick.

How To Use

Mn_Quit.QuitApp(): stops play mode in the editor, and calls Application.Quit() in a build (mobile and desktop).
Mn_ToggleFullScreen.ToggleFullscreen(): flips Screen.fullScreen.
Mn_WindowsMinimizer.Minimize(): minimizes the app window on Windows Standalone builds; it resolves the window handle (process main window, then active/foreground window) and calls ShowWindow(hWnd, SW_MINIMIZE). On other platforms it logs a warning.

    quit.QuitApp();
    toggleFullScreen.ToggleFullscreen();
    windowsMinimizer.Minimize();

Good to know:

Application.Quit() does nothing in the editor — that is why Mn_Quit stops Play Mode instead. It is also a no-op on iOS by Apple's guidelines: never build a UI whose only way out is a Quit button on mobile.
Minimize() is Windows Standalone only. Everywhere else it logs a warning and returns. It resolves the handle from the process main window and falls back to the foreground window: in the editor it is skipped unless Allow In Editor is on — and with that on it minimizes the Unity editor itself.
Fullscreen is a toggle on Screen.fullScreen, so it follows whatever the player did with Alt+Enter: read the property, do not keep your own boolean.

Testing Scene

Open WindowsDeviceManagentScene in the module's Debug/ folder.

What to do, in order:

Toggle fullscreen from the inspector and read the reported mode.
Press minimise — the editor window really does go to the taskbar.
Build a player and repeat both.

Step 3 is the honest one. In the editor the Game view does not truly go fullscreen, so the value changes while the picture does not. Quit deliberately has no button: Application.Quit does nothing in the editor, is ignored by browsers on WebGL, and is grounds for rejection on iOS.

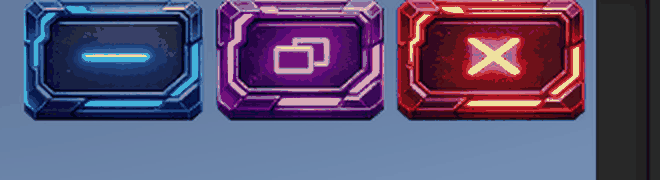

The demo scene is one corner of a window: minimise, restore and close, wired to the module. The recording is those three buttons and nothing more, on purpose - they act on the real window, and in the editor the real window is the editor. Minimise sends Unity itself to the taskbar, and close is exactly what it says it is.

So try them from a built player, as step 3 says, and keep them out of reach while you are editing.

Technical Info

Mn_Quit: MonoBehaviour exposing QuitApp(), which quits the build or stops play mode in the editor (platform-guarded).
Mn_ToggleFullScreen: MonoBehaviour whose ToggleFullscreen() toggles Screen.fullScreen.
Mn_WindowsMinimizer: Windows-Standalone MonoBehaviour that minimizes the game window through Win32 P/Invoke (ShowWindow), with editor-skip and verbose-logging options.
