Damage System

Summary

The Damage System is a comprehensive solution for managing and manipulating the damage of game objects. It provides advanced functions for applying damage, healing, controlling vulnerability, and managing events related to the object's life.

Modules Dependencies

The Damage System module requires the following dependencies:

Generic Component: Module that manages a base class for components.

Ensure that these dependencies are correctly imported and configured in your project.

Carried inside the prefabs. These modules are not referenced by the assembly definition - the components are simply already attached to the prefabs this module ships. Remove one of them from the project and the prefab keeps its layout and loses that behaviour, with nothing in the console to say so.

Module	Component, and the prefab carrying it
`ComponentModule/ColliderAutoResizeComponent`	`Mn_ColliderAutoResizeComponent` (in `Damageable2D`)
`UtilitySystems/CollisionSystem`	`Mn_Collider3DEvents` (in `CollisionAttacker`)

Setup

To set up the Damage System, follow these steps:

Damage Component

Depending on the type of damage to do to a target, this system provides to damage three types of targets: Collision Target, Mn_HealthComponent Target or a class that inherit by IDamageable. Use the appropriate prefab depending on your requirement

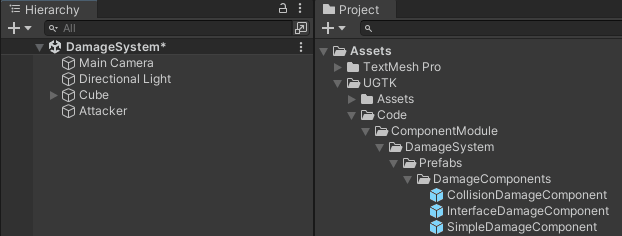

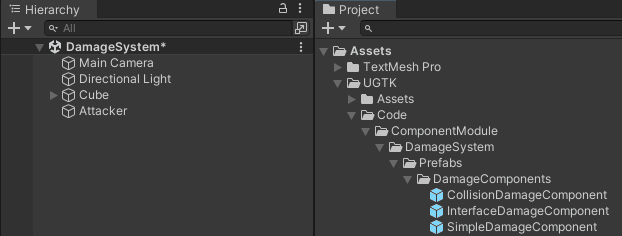

Add InterfaceDamageComponent prefab, CollisionDamageComponent prefab or SimpleDamageComponent prefab to your scene:

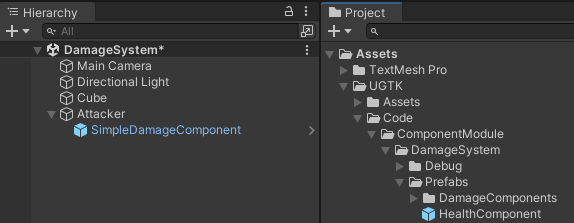

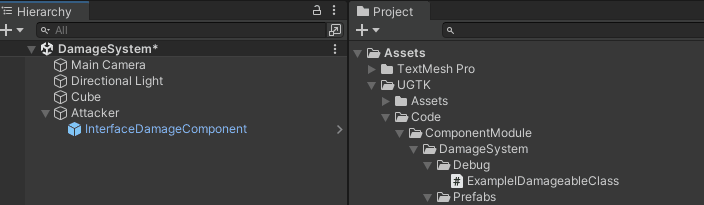

Add the corresponding Receiver of the damage, depending on the Mn_DamageUsed

If you're using the Mn_HealthComponent, remember about to set the max life and the life:

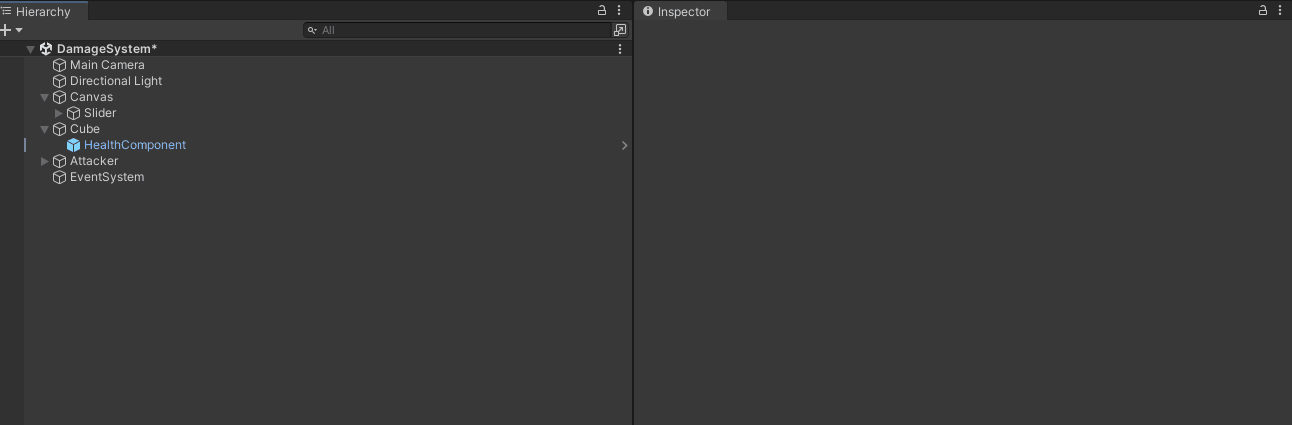

If you have a slider for the life, attach it!

How To Use

To use the Damage System, use the following methods:

Apply Damage:


     //T can be Collision, Mn_HealthComponent, or IDamageable class
     T target;

     //T1 is any class that inherit by Mn_DamageComponent. Substitute it with
     // 1. Mn_BaseDamageComponent
     // 2. Mn_CollisionDamageComponent
     // 3. Mn_InterfaceDamageComponent
     T1 damageComponent;

     damageComponent.DamageTarget(target);

Healing Mn_HealthComponent:


     float amount;
     Mn_HealthComponent healthComponent;

     healthComponent.Heal(amount);

Fully Heal:


     Mn_HealthComponent healthComponent;

     healthComponent.HealTotally();

Make Invulnerable:


     Mn_HealthComponent healthComponent;

     healthComponent.BecomeInvulnerable();

Make Vulnerable:


     Mn_HealthComponent healthComponent;

     healthComponent.BecomeVulnerable();

Testing Scene

Open DamageSystem in the module's Debug/ folder.

What to do, in order:

Select Damageable > HealthComponent and use the Health Component Controls block at the bottom of its inspector, with the editor stopped:

Press Take Damage a few times and watch Current Life fall by the damage amount each time.
Press Become Invulnerable, then Take Damage again. The life does not move and the Vulnerable tick is off: that is the whole point of the flag.
Press Become Vulnerable and damage again. It falls once more.
Press Heal Totally, then Kill. Life goes back to the maximum, then straight to zero.
Apply damage twice in the same frame from your own code.

Step 5 is the one that catches real bugs: a death event that fires twice runs the game-over sequence twice, and the second run usually happens after the first has already torn the scene down.

Technical Info

The following are the main scripts and workflow of the Damage System. Refer to the UML section for the detailed structure.

Scripts:

IDamageable: Interface for objects that can take damage.
Mn_HealthComponent: Component that manages the health of an object, allowing for damage and healing.
Mn_DamageComponent: Abstract base class for components that apply damage to targets of type T.
Mn_InterfaceDamageComponent: Component that applies damage to IDamageable targets.
Mn_CollisionDamageComponent: Component that applies damage to Mn_HealthComponent targets during a collision.
Mn_BaseDamageComponent: Component that applies damage directly to Mn_HealthComponent targets.
Mn_BlinkFeedbackComponent: Blinks one or more visuals by alternating their alpha — the classic "I've been hit" and "I'm temporarily invulnerable" feedback. Wire it to Mn_HealthComponent.onDamaged by calling Blink(), or call Blink(float) to match a window computed at runtime (for example the invulnerability you just started). It drives both UI (Graphic: Image, RawImage, text) and world SpriteRenderers, so the same component covers 2D and UI without keeping two versions around. With no target assigned it takes the ones on itself and its children. Two details worth knowing: the "visible" phase restores each target's original alpha rather than forcing 1, so intentional transparencies survive; and OnDisable restores the alphas, because an object switched off mid-blink would otherwise stay invisible for good.
