Key Input Action System

Summary

The Key Input Action System binds keys and gamepad axes to UnityEvents from the inspector, and — this is the part Unity does not give you — handles auto-repeat: hold the key and the event keeps firing at a configurable interval, with an optional delay before the repetition starts.

That is the behaviour every menu needs (hold Down and the selection keeps scrolling), and the reason this module exists instead of a two-line if (Input.GetKeyDown(...)).

Modules Dependencies

Input Compatibility: every read goes through UGTKInput, so the module works with the legacy Input Manager and the new Input System alike.
Dictionary System: the legacy maps are S_Dictionary<KeyCode, UnityEvent>, serializable in the inspector.

Setup

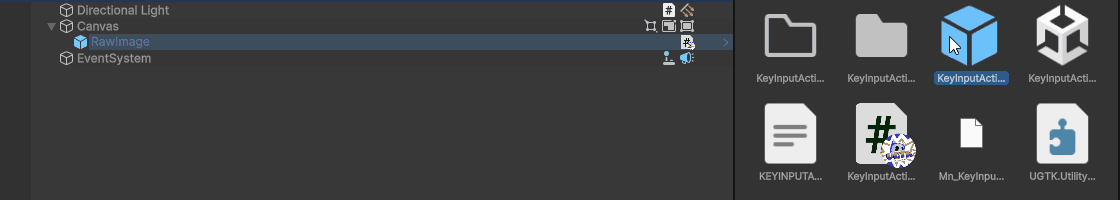

Drop the KeyInputAction prefab into the scene, or the XBox one for a controller-oriented setup:

Then fill in whichever of the three sections you need — they can be used together.

How To Use

1. Legacy map — key → event. The simplest form: add an entry to keyInputActions with a KeyCode and what to do. A second map, keyInputReleaseActions, does the same on key up. Both can be switched off with their own flag.

2. Key Repeat Actions — one entry per key, each with its own settings:

Field	Meaning
`key`	the key to watch
`onTriggered`	what to do, on press and on each repetition
`onReleased`	what to do on release
`invokeImmediatelyOnKeyDown`	fire once as soon as the key goes down
`repeatWhileHeld`	keep firing while it is held
`useUnscaledTime`	keep repeating while the game is paused — turn it on for menus

3. Axis Range Actions — fire while an axis sits inside a range, which is how you turn an analog stick into a directional command:

Field	Meaning
`axisName`	the axis, e.g. `Vertical`
`useRawAxis`	read the raw value (no smoothing): snappier, the right choice for menus
`min` / `max`	the range that counts as "pressed" — `0.8`..`1.0` means "pushed nearly all the way up"
`deadzone`	below this the axis is treated as zero, to ignore a resting stick that does not centre
`onTriggered` / `onExitRange`	entering (and repeating) versus leaving the range

From code, the component also exposes thin pass-throughs that already go through UGTKInput: ReadAxis, ReadAxisRaw, ReadButton, ReadButtonDown, ReadKey, ReadKeyDown, ReadMouseButton, ReadMouseButtonDown.

Good to know:

The legacy maps need at least one entry to detect anything, and with the new Input System selected in Player Settings they need Both in Active Input Handling — otherwise KeyCode reads are not available at all. This is the usual reason "the keys do nothing".
useUnscaledTime is what makes a pause menu usable. With Time.timeScale = 0 the repeat driven by scaled time never advances: the first press works and holding does nothing.
A deadzone that is too small makes a worn stick auto-repeat on its own; too large and small pushes are ignored. 0.1 is a sensible starting point.
Ranges should not overlap between two axis actions on the same axis, or both fire together.
Nothing is exclusive: a key bound in both the legacy map and a repeat action fires both events.

Repeat, In Detail

The sequence when a key goes down, with invokeImmediatelyOnKeyDown and repeatWhileHeld both on:

onTriggered fires immediately.
Nothing happens for firstRepeatDelay seconds — the pause that stops a single tap from turning into a burst.
From then on onTriggered fires every repeatInterval seconds, until the key is released.
On release, onReleased fires.

With invokeImmediatelyOnKeyDown off the first fire is skipped and only the repetition remains; with repeatWhileHeld off you get exactly one fire per press.

Testing Scene

Open KeyInputActionScene in the module's Debug/ folder.

What to do, in order:

Press a bound key and watch its event fire.
Hold it down and watch the repeat interval.
Bind an action to a key the editor itself uses, and fire it from the inspector instead.
Leave one binding with no listener attached.

Step 3 is why the inspector has buttons: some keys never reach the game because the editor eats them first, and a keyboard layout without the key you chose makes a binding untestable at your desk. Step 4 shows the silent case — a row that looks configured and does nothing.

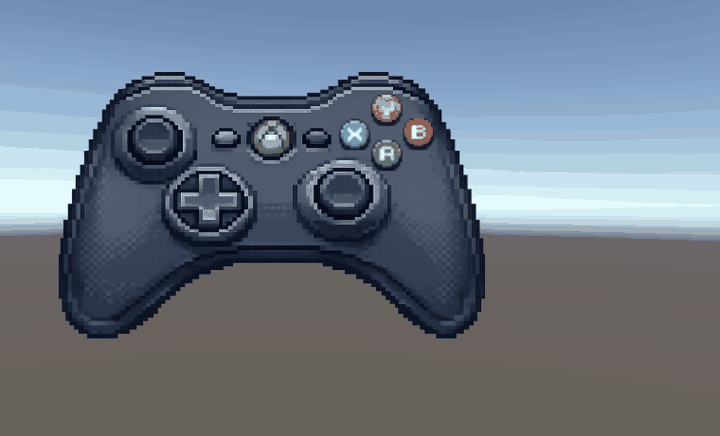

The recording is step 3 in action. The demo's bindings are joystick buttons, which no keyboard can press: select KeyInputActionXbox, and in Editor Test Tools press Invoke next to JoystickButton0 - the "Jump" label appears beside the A button in the game, and the Release row puts it away again. That is the whole reason those buttons exist: the binding is exercised through the same entry point the key would use, with no gamepad in the room.

Note that the scene's other object, KeyInputAction, ships with an empty list - it is the blank example, and its test block reads "no binding" until you add one.

Technical Info

Path	Content
`Scripts/Runtime/KeyInputActionSystem.cs`	The whole system: the two legacy maps with their repeat settings, `S_KeyRepeatAction`, `S_AxisRangeRepeatAction` and the `Read*` pass-throughs
`Prefabs/KeyInputAction.prefab`	Ready-made component
`Prefabs/XBox.prefab`	Variant pre-filled for a controller
`Debug/KeyInputActionScene.unity`	Test scene
