Range System

Summary

An extension of the Counter system: it classifies the counter's CurrentValue into a list of non-overlapping inclusive bands and invokes the UnityEvent<int> of the first matching band, passing the value. Overlaps are auto-corrected in the editor.

Modules Dependencies

UtilitySystems / Counter (UGTK.UtilitySystems.Counter): Mn_Range derives from Mn_Counter and reuses its CurrentValue, MaxValue, ShouldInvokeCounterEvents and OnCurrentValueChanged hook.

Setup

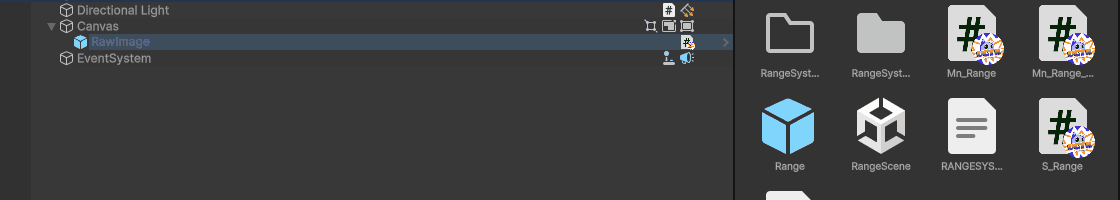

Drop the Range prefab into the scene — a GameObject with Mn_Range (counter + bands) ready to configure:

How To Use

Add Mn_Range to a GameObject (it is a Mn_Counter, so it has all counter fields plus the range bands).
Fill the ranges list; each S_Range has min, max and an onMatched (UnityEvent<int>). Bands are treated as inclusive and must not overlap.
Configure behaviour:
verifyRangeWhenCounterChanges (default true): every time CurrentValue changes, VerifyRange() runs automatically.
axisVisualMin: the lower end of the numeric axis drawn by the custom editor (independent from counter clamping); AxisVisualMax mirrors MaxValue.
Call VerifyRange() (or let the counter change trigger it): it normalizes each band (min ≤ max), and invokes the onMatched of the first band that contains CurrentValue, then returns. If any two bands overlap it logs an error and does nothing.

In the Editor, OnValidate normalizes bands, pushes overlapping bands forward to keep them exclusive, and enforces axisVisualMin / MaxValue bounds from the first/last band.

Good to know:

Only the FIRST matching band fires. VerifyRange() returns after the first hit, so bands are meant to partition the axis, not to layer on top of each other.
Overlapping bands abort the whole check. If two bands overlap at runtime the component logs an error and invokes nothing — no fallback event. The editor pushes bands apart on OnValidate, but a list built from code has to be kept exclusive by hand.
A value outside every band fires nothing: there is no "default" event. Cover the whole axis if you always need a reaction.
Since Mn_Range is a Mn_Counter, everything in the Counter System applies here too — including the fact that jumps skip the counter's own thresholds.

Testing Scene

Open Debug/RangeScene.unity and press Play: increment the counter from the inspector and watch the band events fire as the value crosses from one range to the next.

Technical Info

Mn_Range: Mn_Counter subclass. Holds a List<S_Range>, classifies CurrentValue in VerifyRange(), overrides OnCurrentValueChanged to auto-verify, and resolves band overlaps in OnValidate.
S_Range: serializable struct { int min; int max; RangeMatchedUnityEvent onMatched; } — an inclusive band with its listener.
RangeMatchedUnityEvent: UnityEvent<int> payload passed the matched value.
