UGTK / Toolkit / Utility Systems / Image Picker Completed

Image Picker Module

Summary

The Image Picker module provides a simple way to select images from WebGL builds.

Content

Modules Dependencies
Setup
How To use
Testing Scene
Technical Info

Modules Dependencies

None. The module has no UGTK dependency.

Setup

There is nothing to install: the module ships the file browser and the WebGL picker together.

On desktop, call StandaloneFileBrowser.OpenFilePanel (or its Async twin) from your own script. There is no component to add — it is a static API, and the right platform implementation is selected for you at compile time.
On WebGL, add ImageWebglPicker to a GameObject and call AskForImage. The browser's own file dialog opens, because a web page cannot open a native one.

The two paths exist because they are genuinely different: the desktop dialog returns a path, the browser returns the file contents. Code that assumes a path will not survive a WebGL build.

How To Use

To use the Image Picker module, you need to follow the steps below:


ImageWebglPicker imageWebglPicker = GetComponent<ImageWebglPicker>();

imageWebglPicker.AskForImage((texture) =>

{

    // Do something with the texture

});

Testing Scene

It does have one, in fact two: BasicSampleScene and CanvasSampleScene, under Picker/Sample/. They work in the editor - the picker falls back to the operating system's own file dialog when it is not running in a browser - so most of the module can be tried without a WebGL build at all.

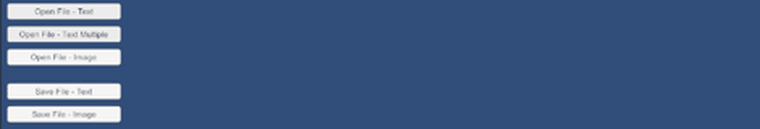

The recording is Open File - Text in CanvasSampleScene: press it, the system dialog opens, and the contents of whatever you choose arrive in the scene. Open File - Image does the same with bytes, which the sample prints raw - so the label filling with ‹PNG and binary noise is the sample being blunt, not the picker failing.

What genuinely needs a build is the browser side: the picker there is an <input type="file"> that the page must open from inside a user gesture, and a file chosen on a phone arrives with a different orientation than the same file on a desktop. Both belong to the steps below.

Technical Info

The Image Picker module uses the ImageWebglPicker class to ask for images from WebGL builds.

ImageWebglPicker has the following methods:

AskForImage: Asks for an image from the user and provide a callback to receive the image texture.
ReceiveImage: Receives the image texture base64 from javascript and converts it to a texture and call the callback received in AskForImage.
