Char Limiter System

Summary

The Char Limiter System caps how many characters the player can type into a TMP_InputField and keeps a live count of the current length. One component, one number: it applies TMP's own characterLimit and trims anything that gets through anyway, so the field can never hold more than the maximum.

Modules Dependencies

None on the UGTK side. It requires Unity's TextMeshPro package, since it drives a TMP_InputField.

Carried inside the prefabs. These modules are not referenced by the assembly definition - the components are simply already attached to the prefabs this module ships. Remove one of them from the project and the prefab keeps its layout and loses that behaviour, with nothing in the console to say so.

Module	Component, and the prefab carrying it
`UIModule/TextUpdaterSystem`	`Mn_TextUpdater` (in `Char Limiter InputField (TMP)`)

Setup

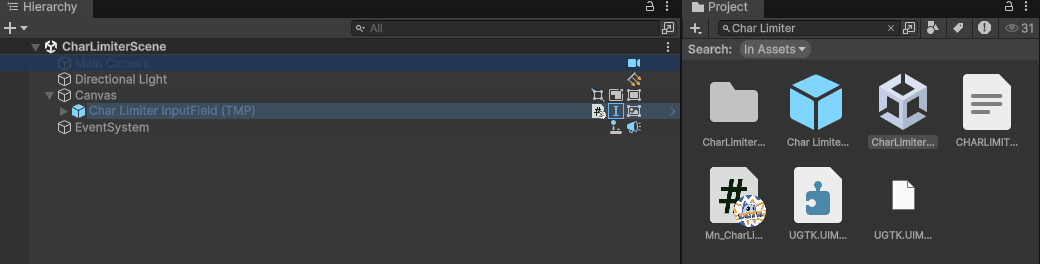

Drop the Char Limiter InputField (TMP) prefab under a Canvas — a TMP input field with Mn_CharLimiter already on it:

Or add Mn_CharLimiter to an existing input field: the component is [RequireComponent(typeof(TMP_InputField))], so it has to live on the same GameObject as the field.

How To Use

Set Max Characters (default 20) in the inspector and you are done. On Awake the component writes that value into the field's characterLimit, subscribes to onValueChanged, and initialises Current Characters with the length of whatever the field already contains.

var limiter = inputField.GetComponent<Mn_CharLimiter>();

int used = limiter.currentCharacters;          // live count, updated on every keystroke
int left = limiter.maxCharacters - used;        // "23 / 30" style counters

Both fields are public, so a counter label can simply read currentCharacters in Update, or you can add your own listener on the input field's onValueChanged.

Good to know:

Changing maxCharacters at runtime is only half applied. characterLimit is written once, in Awake: raising the max later will not let the player type more (TMP still blocks at the old limit), while lowering it does trim the text on the next keystroke. If you need a limit that really changes at runtime, set inputField.characterLimit as well.
There is no event. currentCharacters is a plain field: nothing fires when it changes. Wire the field's own onValueChanged if you need to react.
The trim uses Substring, so it counts UTF-16 code units, not user-perceived characters: an emoji or a surrogate pair counts as two.

Testing Scene

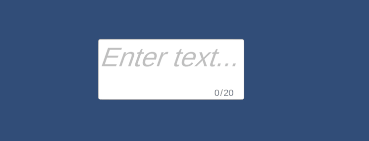

Open Debug/CharLimiterScene.unity and press Play: type into the field and the input stops at the configured maximum:

Technical Info

Path	Content
`Scripts/Runtime/Mn_CharLimiter.cs`	The whole system: applies `characterLimit`, listens to `onValueChanged`, trims the overflow, updates the count, unsubscribes in `OnDestroy`
`Prefabs/Char Limiter InputField (TMP).prefab`	TMP input field with the component already attached
`Debug/CharLimiterScene.unity`	Test scene
