First Person 3D

Summary

First-person controller for a CharacterController: movement, mouse/stick look and jump driven through the UGTK KeyInputActionSystem, reusing the UGTK movement and jump components.

Content

Modules Dependencies
Setup
How To Use
Testing Scene
Technical Info

Modules Dependencies

UGTK.ComponentModule.MovementComponent — Mn_CharacterControllerMovementComponent extends Mn_MovementComponent.
UGTK.ComponentModule.JumpComponent — Mn_CharacterControllerJumpComponent extends Mn_JumpComponent.
UGTK.UtilitySystems.KeyInputActionSystem — input reads (axes, buttons, keys, mouse) go through KeyInputActionSystem.

Setup

Add a CharacterController and Mn_FirstPersonPlayerController to the player, attach Mn_CharacterControllerMovementComponent and Mn_CharacterControllerJumpComponent (as UGTK component children), set the camera pivot, and make sure a KeyInputActionSystem prefab/system is present in the scene.

How To Use

Put Mn_FirstPersonPlayerController on a GameObject with a CharacterController; Reset/Awake auto-wire the movement and jump components and locate a KeyInputActionSystem if none is assigned.
Assign cameraPivot (child that pitches) and tune mouseSensitivity, joystickLookSensitivity, pitchMin/pitchMax, walkSpeed.
Movement input can come from Input Manager axes (Horizontal/Vertical) or from UnityEvent hooks (OnMoveForwardPressed/Released, etc.) depending on useInputManagerAxesForMovement.
Jump can come from the "Jump" virtual button (useInputManagerVirtualJump) or from the OnJumpPressed() UnityEvent hook.
Look reads Mouse X/Y plus optional RightLook X/Y stick axes; on desktop the cursor is locked/hidden (toggle with lockAndHideCursor, released with Escape or RequestCursorUnlock()).
Ground contact is fed to the jump component via OnControllerColliderHit + LateUpdate (FeedGroundProbe).

Testing Scene

Open FirstPerson3DTest in the module's Debug/ folder.

What to do, in order:

Walk with the keys, then look around with the mouse.
Jump, and jump again the instant you land.
Walk into a slope and into a step.
Press RequestCursorUnlock() from the inspector.

Step 4 is the one you will use constantly: a first-person controller locks the pointer, and once locked the inspector is unreachable without stopping the game — so tuning a value means losing the position you were testing from.

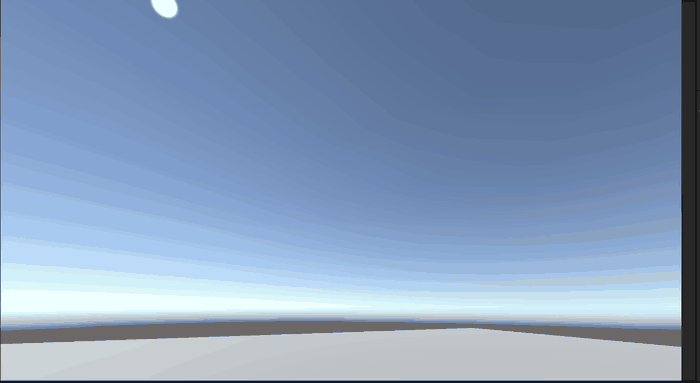

The recording is step 1: the mouse turns the view - watch the sun travel across the sky - and W walks forward. The demo scene is a bare floor with nothing on it, so the horizon and the sun are the only landmarks; drop a couple of boxes in before you try steps 2 and 3, or there is nothing to jump onto and no slope to walk into.

Technical Info

Mn_FirstPersonPlayerController: reads input through KeyInputActionSystem (with Input fallback), drives look/move/jump, manages cursor lock, and exposes UnityEvent hooks for WASD/jump.
Mn_CharacterControllerMovementComponent: Mn_MovementComponent variant that moves via CharacterController.Move, applies gravity, and accumulates vertical velocity (ApplyJumpImpulseWorld).
Mn_CharacterControllerJumpComponent: Mn_JumpComponent variant for a CC without a Rigidbody; applies the jump impulse to the movement component, supports the ReachReferencePoint force source, and detects landing via FeedGroundProbe.
