Resolution System

Summary

The Resolution System provides a simple and practical way to let players change the game's screen resolution directly from a UI dropdown. It is designed to work with TextMeshPro dropdown components and automatically applies the selected resolution while preserving the current fullscreen mode.

Modules Dependencies

The Resolution System module requires the following dependencies:

DropDownExtension: Add the event On Value Changed to the dropdown.
Unity Text Mesh Pro

Ensure that these dependencies are correctly imported and configured in your project.

Setup

To set up the Resolution System, follow these steps:

Resolution System Setup

Add the prefab ResolutionDropdown in your canvas:

Populate the dropdown options with supported resolutions (for example: 1920x1080, 1280x720, 2560x1440):

How To Use

Public methods that are avaible to use:

ChangeResolution(): Reads the currently selected dropdown option, extracts width and height values, and applies the selected screen resolution. resolutionSystem.ChangeResolution(); The ChangeResolution() method is already assigned to the OnValueChanged(string) UnityEvent of the DropDown_Extension script by default.

Testing Scene

Open ResolutionSystemSceneTest in the module's Debug/ folder.

What to do, in order:

Press ChangeResolution() in Play Mode and read the values in the inspector.
Build a player and do the same there.
Try a resolution the monitor does not support.

Step 2 is not optional: the editor's Game view follows its own aspect-ratio menu and ignores Screen.SetResolution entirely, so the numbers change while the picture does not. Only a built player tells the truth.

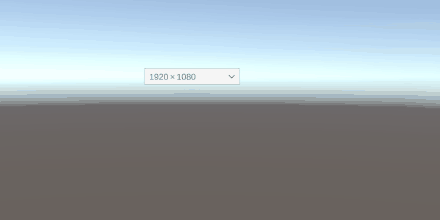

The recording is the scene's dropdown: it fills itself with the resolutions the system reports and switching to one of them takes. Watch what the picture does while you do it - nothing. That is step 2's point, visible here: the Game view follows its own aspect-ratio menu and ignores Screen.SetResolution, so in the editor the value changes and the image does not. Only a built player tells the truth.

Technical Info

The following are the main scripts and workflow of the Resolution System. Refer to the UML section for the detailed structure.

Scripts:

Mn_ResolutionSystem: script applied to a dropdown that automatically applies the selected resolution while preserving the current fullscreen mode..
Mn_UGTKDropDown_Extension: Add the event OnValueChanged(string) to the dropdown..
